SCTK752C Series Split Core Current Transformer with 1 A or 5 A Rated Output Current and 5% In to 130% In Measuring Range for ≤ ±10′ Phase Angle Error

5000
MOQ
SCTK752C Series Split Core Current Transformer with 1 A or 5 A Rated Output Current and 5% In to 130% In Measuring Range for ≤ ±10′ Phase Angle Error
特徴 ギャラリー 製品の説明 今からお話し
特徴
仕様
ハイライト:

1 A or 5 A Rated Output Current Split Core CT

,

5% In to 130% In Measuring Range Current Transformer

,

≤ ±10′ Phase Angle Error Split Core Current Transformer
基本情報
起源の場所: 中国
ブランド名: SHINHOM
証明: RoHS
モデル番号: SCTK752C
ドキュメント: SCTK752C_.pdf
お支払配送条件
受渡し時間: 2〜8週間
支払条件: L/C、T/T
製品の説明

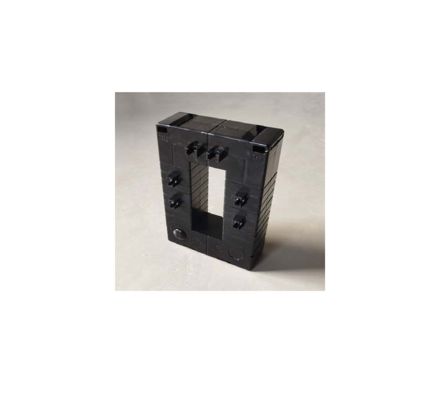

SCTK752C Series Split Core Current Transformer
Engineered for hassle-free installation on live circuits, the SCTK752C Series Split Core Current Transformer enables reliable electrical measurement without system downtime. This switchable transformer features a robust, epoxy-encapsulated design with a high magnetic conductivity silicon steel core, ensuring long-term stability, excellent linearity, and high sensitivity across a broad current range. Ideal for energy management and power quality analysis, it delivers accuracy classes of 0.2 or 0.5, making it a versatile solution for modern industrial and commercial applications.
Key Features
  • Rated Input Current: 5 A to 5000 A
  • Rated Output Current: 1 A or 5 A (selectable)
  • Accuracy Class: 0.2, 0.5
  • Frequency Range: 50 - 400 Hz
  • Measuring Range: 5% In to 130% In
  • Phase Angle Error: ≤ ±10′
  • Dielectric Strength: 2.5 kV / 1 mA / 1 min
  • Insulation Resistance: ≥ 100 MΩ at 500 V DC
  • Operating Temperature: -25 ℃ to +75 ℃
  • Construction: Epoxy resin casting, double-screw tight structure
Applications
  • Energy Management Systems: Continuous power monitoring for lighting, motor, and power device loads on the demand side.
  • Power Quality Analysis: Integration into power quality analyzers and active filters for harmonic and load profiling.
  • Industrial Automation: Real-time current measurement in control systems and machinery without interrupting operation.
  • Smart Grid & Renewable Energy: Current sensing in distribution networks, solar inverters, and wind power systems.
  • Retrofit & Upgrade Projects: Ideal for quick installation on existing busbars or cables in data centers, commercial buildings, and factories.
