Automotive-Grade LF RFID Antenna and SMD RFID Transponder Coil for 125kHz and 134.2kHz Systems with Compact SMD Design

1000
MOQ
Automotive-Grade LF RFID Antenna and SMD RFID Transponder Coil for 125kHz and 134.2kHz Systems with Compact SMD Design
特徴 ギャラリー 製品の説明 今からお話し
特徴
仕様
ハイライト:

Automotive-Grade LF RFID Antenna

,

125kHz and 134.2kHz SMD RFID Transponder Coil

,

Compact SMD Design RFID Coil Antenna
基本情報
起源の場所: 中国
ブランド名: SHINHOM
証明: RoHS
モデル番号: RFID
ドキュメント: RFID.pdf
お支払配送条件
受渡し時間: 2〜8週間
支払条件: LC、T/T
製品の説明

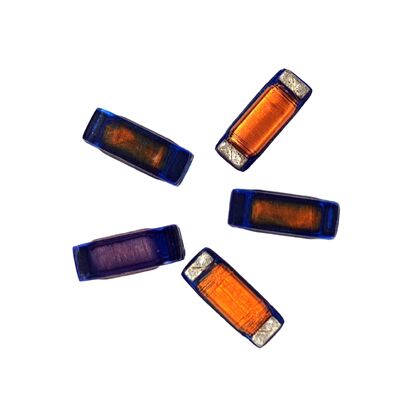

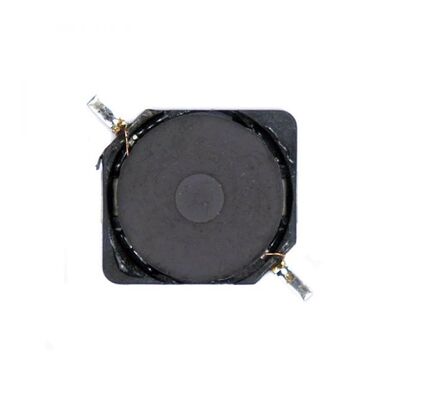

Automotive Grade LF RFID Antenna & SMD Transponder Coil
Designed for low-frequency identification systems, our Automotive Grade LF RFID Antenna and SMD RFID Transponder Coil series delivers stable performance for security-critical applications. Covering RFID902, RFID903, and RFID1103 series, these RFID antennas and RFID coils are optimized for 125kHz and 134.2kHz systems, ensuring reliable communication in automotive and industrial environments.
With compact SMD structures and robust construction, this LF RFID antenna solution is widely used in immobilizers, car access systems, PEPS (Passive Entry Passive Start), and access control devices where durability, accuracy, and consistency are essential.
Key Features
  • Optimized for LF RFID Systems
    Designed for 125kHz and 134.2kHz operating frequencies, ensuring stable resonance and signal integrity in low-frequency RFID applications.
  • Automotive-Grade Reliability
    Qualified to AEC-Q200 standards (RFID902 / RFID903 series) and engineered for harsh operating environments from -40 °C to +85°C.
  • Wide Inductance Range
    Inductance values from 0.11mH to 75mH, supporting flexible circuit matching for various LF RFID antenna and RFID coil designs.
  • Compact SMD & PCB Mount Design
    Space-saving form factors enable easy integration into compact automotive and access control modules.
  • High Q Factor Performance
    Q values up to 80 @125kHz, delivering efficient energy transfer and improved read range.
  • Drop-Resistant Construction (RFID1103 Series)
    Epoxy-coated SMD RFID transponder coils provide enhanced mechanical strength, suitable for automated pick-and-place and high-vibration environments.
  • RoHS-Compliant Materials
    Environmentally friendly materials meet global compliance requirements.
Electrical Characteristics
Parameter Specification
Operating Frequency 125kHz / 134.2kHz
Inductance Range 0.11mH - 75mH (model dependent)
Q Factor ≥8 to ≥80 @125kHz
Self-Resonant Frequency (SRF) >300kHz to >9MHz
DC Resistance (DCR) 0.8Ω - 230Ω
Sensitivity (RFID1103) >30 to >70 mVp-p/Amp @125kHz
Applications
  • Automotive Immobilizer Systems
    Secure key recognition and anti-theft authentication.
  • Car Access & PEPS Systems
    Passive entry and passive start RFID modules.
  • Access Control Devices
    Door locks, security readers, and authentication terminals.
  • Industrial Identification Systems
    Equipment tracking and personnel authentication.
  • Low Frequency RFID Modules
    OEM and ODM integration for customized RFID solutions.
Why Choose Our RFID Antenna & Coil Solutions?
By combining automotive-grade LF RFID antennas with robust SMD RFID transponder coils, we provide a complete RFID coil solution tailored for high-reliability applications. Our products offer stable electrical characteristics, compact design, and proven performance in automotive and access control markets worldwide.
